Detector Integration
Overview
The Endcap Timing Layer (ETL) is a novel timing detector with picosecond resolution being built as part of the CMS experiment's Phase-2 Upgrade. One of the main engineering challenges is integrating it into the CMS infrastructure under tight space constraints, while ensuring smooth integration with other subsystems and services.
My Role
- Project lead responsible for detector integration.
- Continuous development of the large detector assembly in CATIA utilizing the concepts of parametric and skeleton modelling.
- Design and analysis of detector components through hand calculations and FEA in ANSYS, ensuring compliance with industry standards (EN 13480, EN 1993, etc.).
- Collecting inputs from internal project stakeholders across multidisciplinary fields.
- Frequent collaboration with the CMS Integration Office and other CERN teams to find optimal solutions.
- Provided input to facilitate planning for integration, testing, and commissioning activities in upcoming project stages, coordinating with the CMS Technical Coordination and Logistics working group.
Project Gallery
Master 3D integration model.

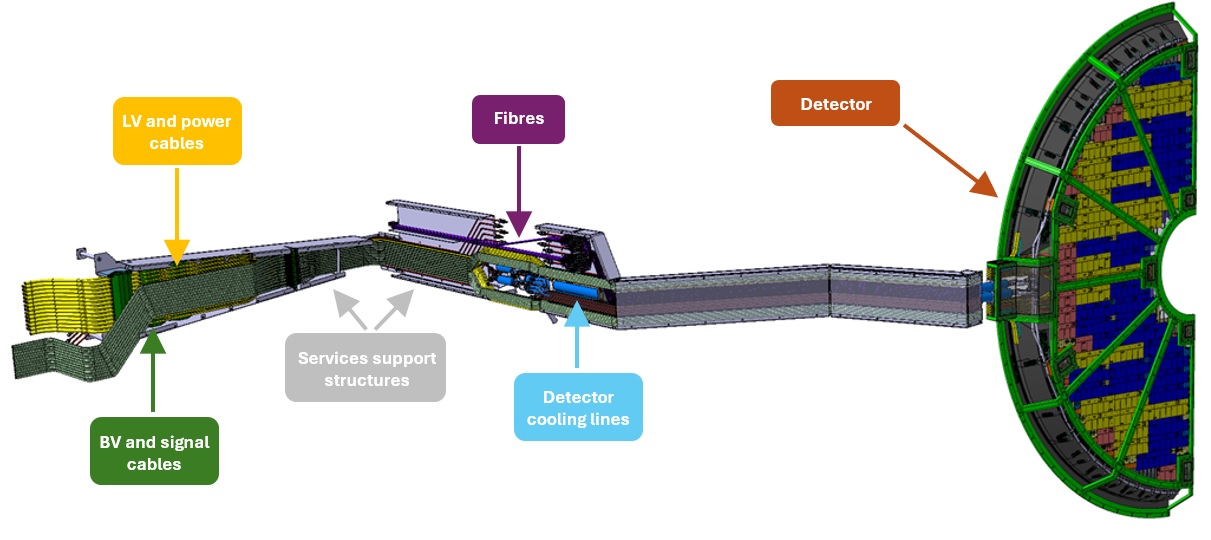

Integration of detector services.

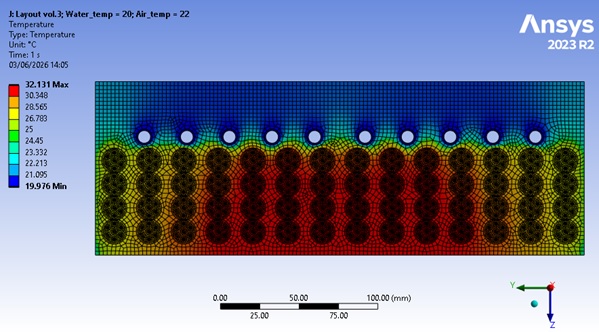

Thermal FEA of detector cables.

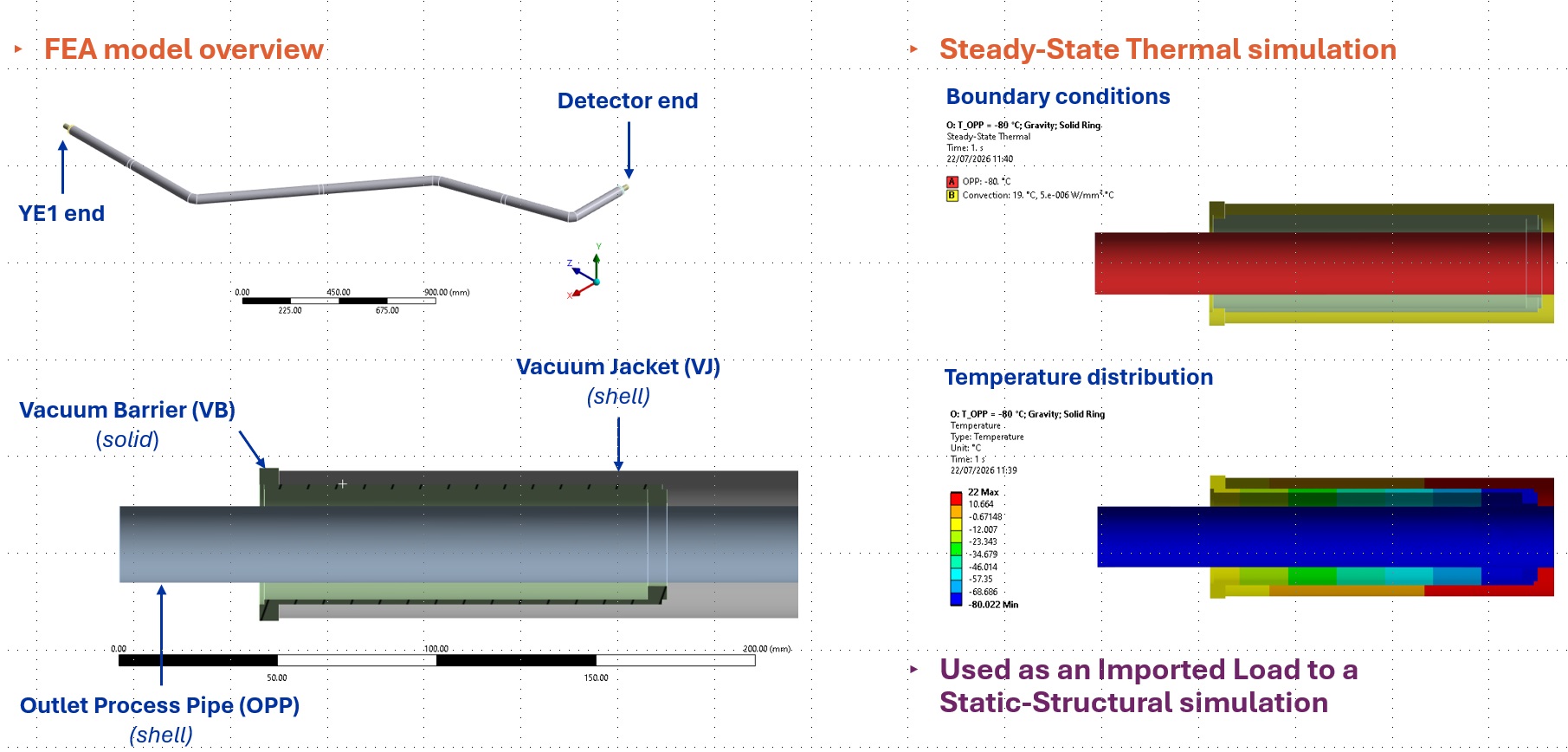

Thermo-mechanical FEA of detector cooling lines.
